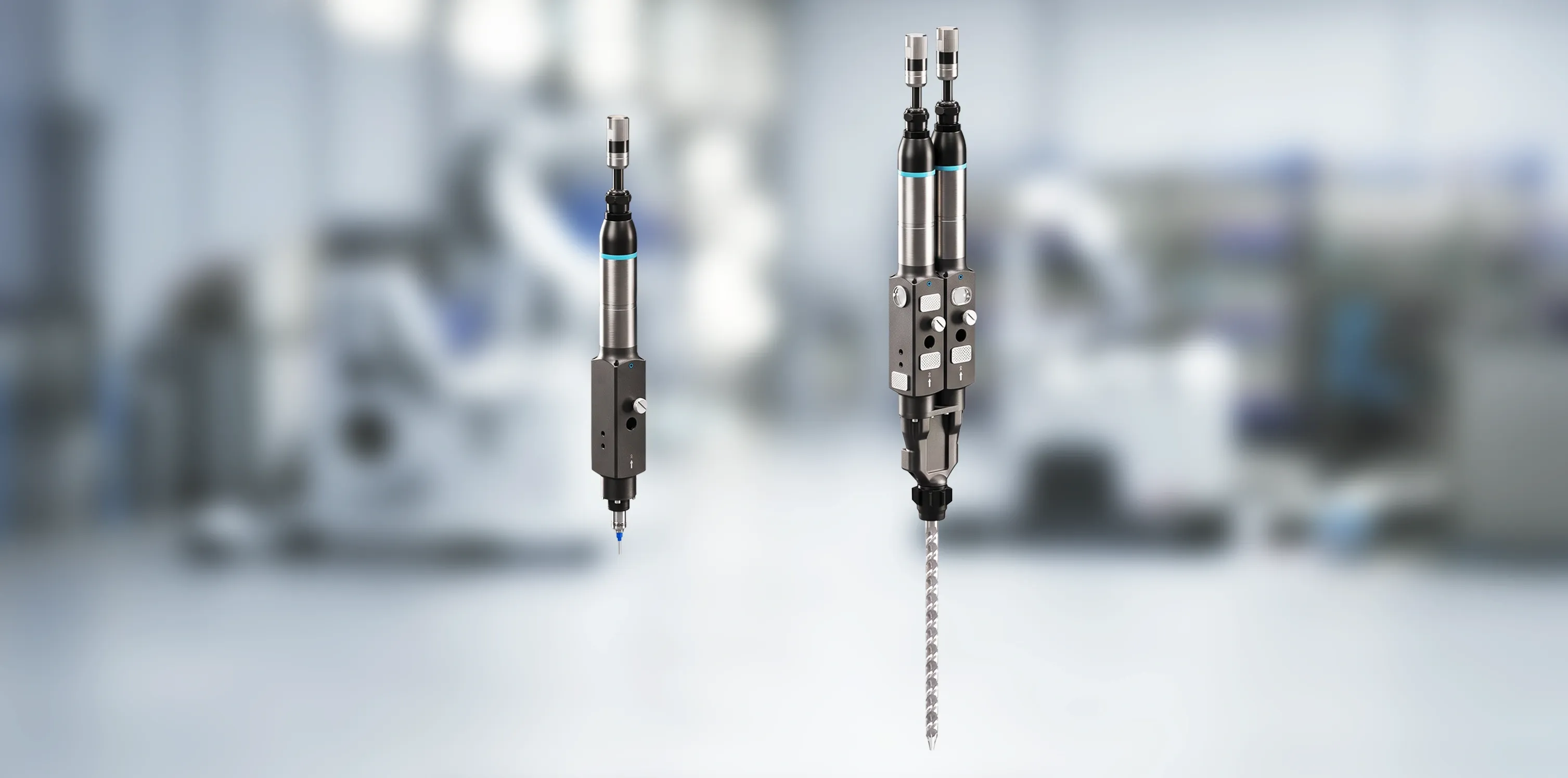

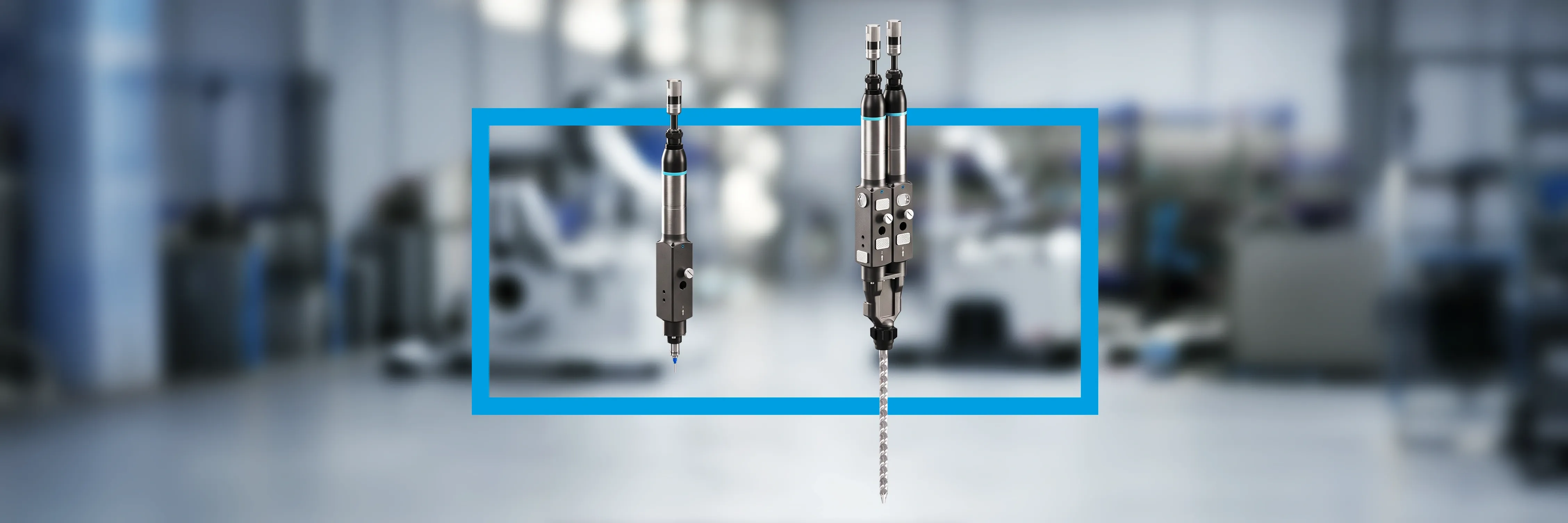

EcoMeter XS – The precise microdispenser
The EcoMeter XS from Dürr brings precision to the ultra-low-volume range. The compact microdispenser applies 1K and 2K adhesives and sealants continuously and repeatably. It is suited for demanding applications in battery assembly, electronics manufacturing, and electric motor production.
Powerful performance features
Whether it's spot application on round cells, bonding magnets into electric servo motors, or small-volume potting processes – with a flow rate of less than 1.0 cm³/s, the EcoMeter XS enables a broad range of precision dispensing tasks. The microdispensing system can even handle highly filled materials and ensures high process stability with an accuracy of less than 1 percent.
No refill downtime
The EcoMeter XS continuously meters and applies the material without interrupting the material flow. This eliminates the need for refilling during dispensing. As a result, cycle times are short and material application is uniform. The dispensing volume can be continuously adjusted to suit the specific application. This ensures that exactly the right amount of material is applied to the component.
Compact and easy to integrate
Its lightweight and space-saving design makes the EcoMeter XS highly flexible.
It is suitable for installation on industrial robots, gantry systems, and low-payload robots. This makes the micro-dispenser ideal for compact manufacturing cells and automated production lines. The dispensing control with a standardized interface simplifies integration into cell PLCs or motion controllers.
Flexible configurations
Thanks to the modular design of the dosing unit, the EcoMeter XS can be flexibly adapted to a variety of 1K or 2K materials, mixing ratios, application volumes, and areas of use. A simple design with few components simplifies maintenance and contributes to high system availability.
Carl-Benz-Straße 34
74321 Bietigheim-Bissingen
Allemagne
Typical applications
- Spot and bead application of thermal interface materials in battery systems
- Magnet bonding in electric motors
- Application of greases and seals
- Low-volume potting of electronic components
FAQ
For very small application volumes down to the microliter range with a dosing accuracy of ±1%.
Yes. The modular design supports 1K and 2K applications as well as high mixing ratios.
Via a standardized interface in cell PLCs or motion controllers.
Silicone-based and non-silicone-based adhesives, sealants, potting compounds, and greases.
For larger volumes, Dürr offers the EcoShot Meter and EcoMeter SP dosing units, covering the entire range of automated application solutions for 1K and 2K adhesives and sealants.
