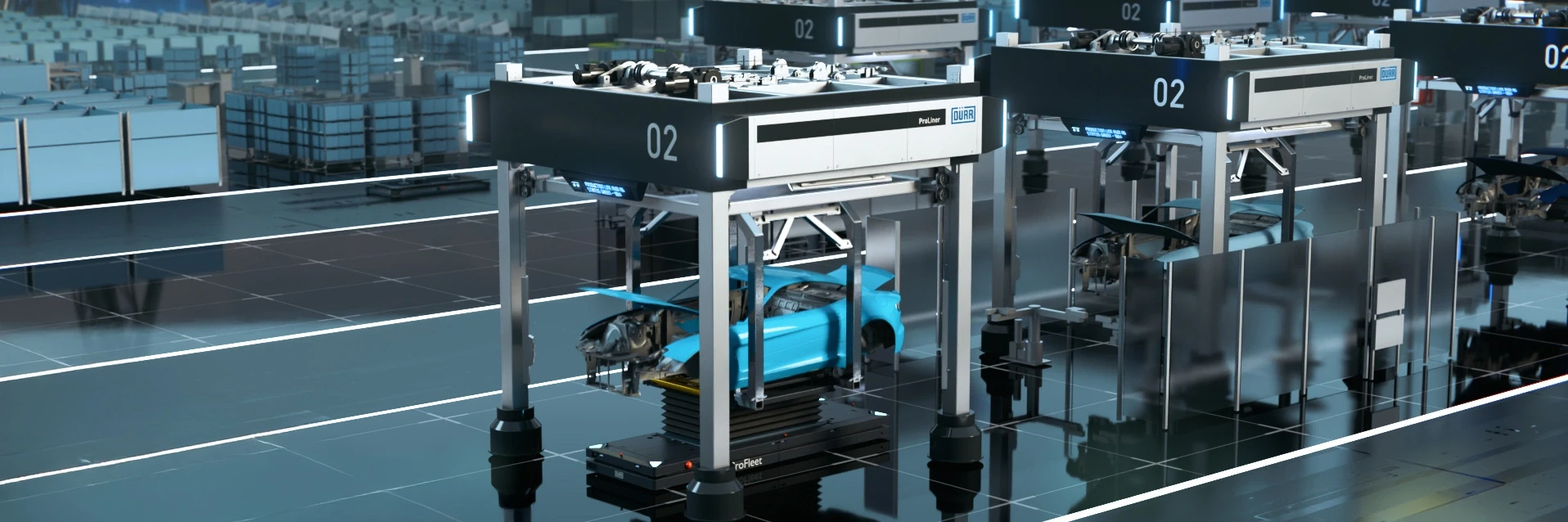

The ProLiner – The revolutionary autonomous guided carrier from Dürr
This innovative system combines the properties of an overhead conveyor with the advantages of an AGV (Automated Guided Vehicle).
The ProLiner is ideal for carrying and lifting heavy loads, such as complete car bodies with battery and axle components. The AGC (Automated Guided Carrier) is able to transport and lift car bodies with 3,5 tons.
It was designed to maximize the flexibility and efficiency of the marriage process, where the drive and chassis components (motor, gear unit, battery, axles, …) are connected with the corresponding car body and are bolted to the correct torque.
The ProLiner can be maneuvered fully flexible to any location in the plant by induction or battery charged. Also customized hangers are possible . It already got all illumination, safety and work instruction or quality screens on board and makes your layout completey independant from heavy secondary steelwork or pits.
Re-arrangement of your process or location is very simple and can be done in short time.
The ProLiner, a revolution that breaks with traditional hanger systems
Customer benefits:
- No specific building requirements
- Buy-as-you-need = invest only into the currently required equipment
- Flexible routing
- Scalable without interruption of running production
- Easy to integrate to greenfield and brownfield
- Short installation time (shipped pre-assembled & pre-tested)
- Low maintenance (optimize performances with DXQequipment.maintenance)
- Adaptable to different vehicle platforms
- Reduction of maintenance time and cost
- Easy reprogrammable according to production needs
- Easy interface with AGVs / AMRs
Features:
- Autonomous guided lifting device
- Approx 4,5 x 4,5 m footprint
- Height approx. 5 m
- Payload up to 3.5 t
- Speed from 1.5 m/min up to 15 m/min
- Continuous, stop & go
- Four omnidirectional drive units
- Natural and/or optical navigation
- VDA5050 ready
- Hybrid power (Induction and Lithium batteries)
- Customizable lifting hangers
- Safety scanners and safety radars
- Area illumination on board
- Integration monitor for work instructions, values, quality, etc.
- Power plugs, air supply
- Maintenance features (DXQequipment.maintenance)
