EcoSmartCure: compact, energy-flexible, and cost-efficient
EcoSmartCure streamlines car body curing thanks to its integrated, compact, single-level design. The stop and go oven combines high energy efficiency with reliable drying results. The innovative Qflex technology offers additional flexibility with free choice of the energy source.
Compact single-level design

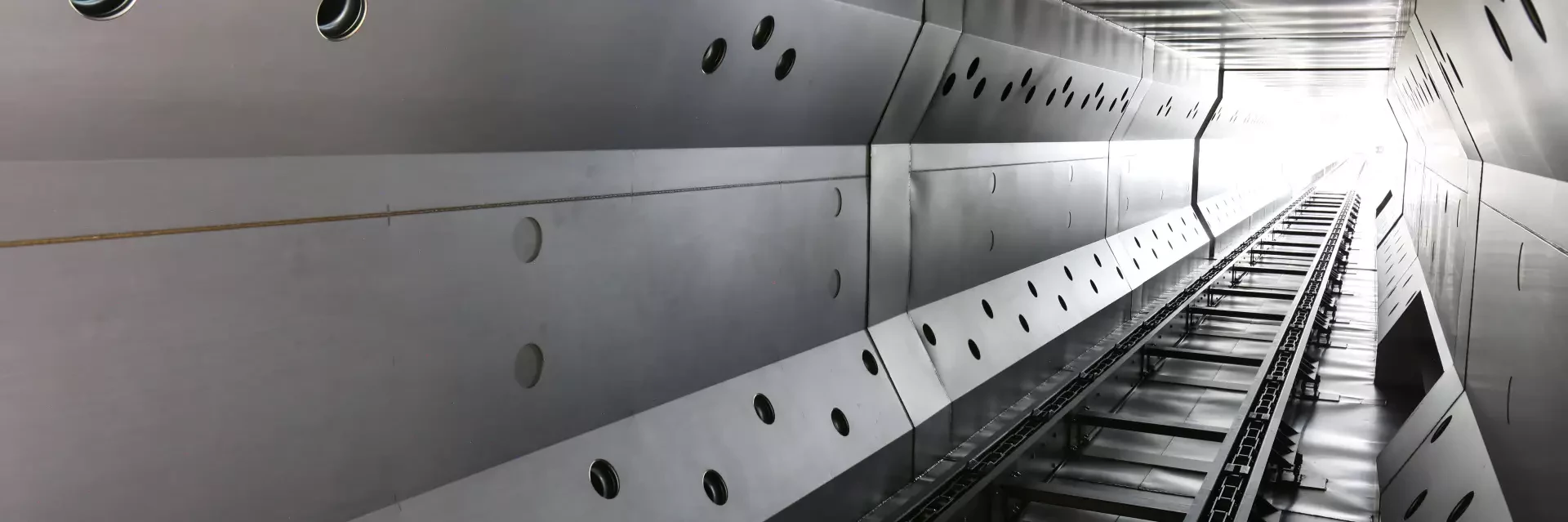

EcoSmartCure is based on a fully integrated oven concept. All key functional components, including the central heating circuit, temperature control, and recirculation fans, are installed directly in the oven tunnel. As a result, the oven does not require additional air circulation units on separate levels and can be integrated into the paint shops in a space-saving manner. The compact design reduces investment costs and provides convenient access to all relevant components. Maintenance and service work can be performed easily and safely at floor level.
Carl-Benz-Str. 34
74321 Bietigheim-Bissingen
Alemanha
Energy flexibility and efficiency
With Qflex technology, EcoSmartCure can be flexibly adapted to meet a variety of requirements regarding energy supply, capital costs, and operating costs. Depending on the requirements, different heating methods, exhaust air purification systems, and efficiency standards can be combined. For example, the choice of exhaust air purification—such as electrically powered RTO systems and conventional gas-fired exhaust air purification—is made to match the selected heating method.
This results in an oven system that is specifically tailored to the operator’s priorities. Whether it’s a cost-effective entry-level solution with low CAPEX, maximum energy efficiency, or minimal operating costs over the system’s entire lifecycle—the modular design enables the right configuration.
The system also remains flexible to meet future requirements. Changing the heating method, integrating new energy sources, or expanding to a hybrid energy concept can be implemented with minimal effort. This makes EcoSmartCure particularly attractive for long-term investment strategies as well as for modernization and brownfield projects.
High curing quality for all vehicle types

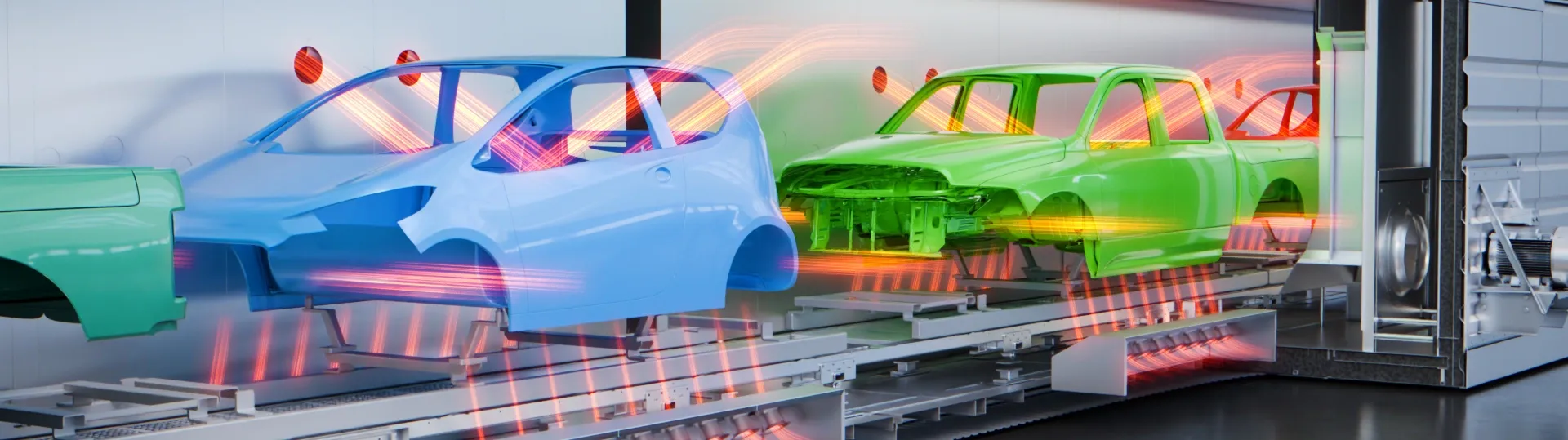

The optimized system design delivers energy-efficient curing while ensuring high process stability. The CFD-optimized airflow and a modern stop-and-go conveyor system ensure that heat is delivered exactly where it is needed. This allows car bodies to be heated quickly, evenly, and consistently. Customized nozzle designs enable reliable curing even for complex body structures and modern vehicle designs, such as electric vehicles. The result is stable processes, high product quality, and optimal conditions for first-rate paint finishes.
Advantages at a glance
- Compact, single-level oven
- Low capital and operating costs
- Easy maintenance and servicing at floor level
- Energy-efficient overall system design
- Flexible choice of heating systems—electric, gas, or hybrid
- Effective body heating through stop-and-go operation
- High process reliability and consistent curing
- Suitable for all vehicle types, including electric vehicles
